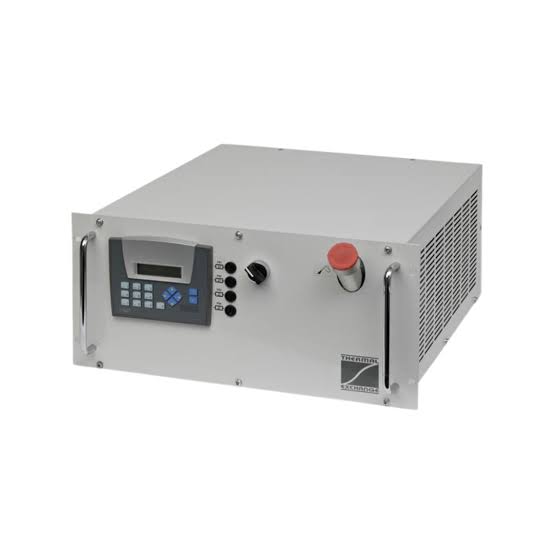

ATC - 19" Rack Mounted Chiller

The R-Series from ATC, ranging from 500W to 2kW in cooling capacity, is characterised by its compact and reliable design. These chillers are well-suited to a variety of applications, providing powerful cooling outputs and coolant flow rates. R-Series chillers are especially beneficial in settings where 19″ racks are pre-existing and have space for a chiller addition. It’s important to note that these rack-mounted chillers are designed to supply heat transfer fluids at a constant pressure to remove heat from processes, differing from systems aimed at cooling internal air temperatures of housings. The R-Series employs air-cooled refrigeration systems as standard, with water-cooled condensers available as an option. Standard features of these chillers include a stainless-steel reservoir, a corrosion resistant stainless-steel evaporator, over-temperature and low liquid level signals, an industry-standard 6-pin signal plug, low noise operation, a non-ferrous coolant circuit, a pressure relief valve, and a convenient liquid fill point. These features, along with several customisable options offered by ATC, ensure that each chiller can be tailored to specific application requirements

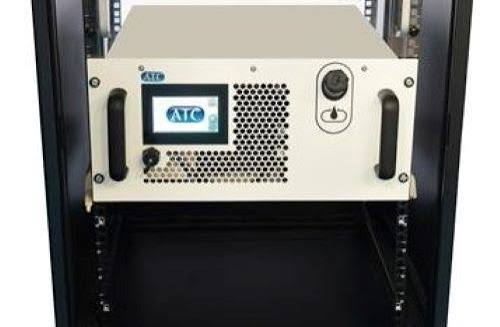

Rack Chiller는 Rack에 장착 가능하며, 좁은 공간활용, 장비 스태킹이 가능 Data center 구축, AI 서버장치등의 발열관리에 적합합니다.
